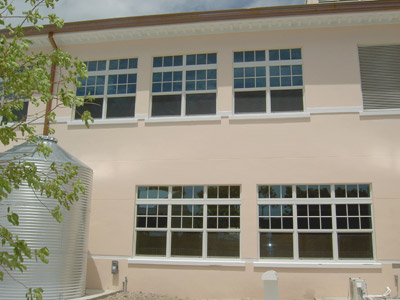

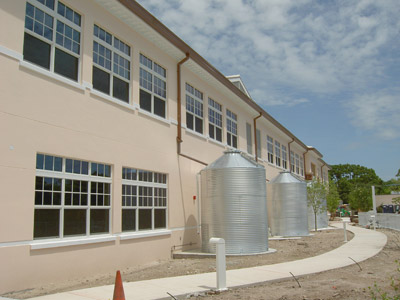

Impact Resistant Single hung windows - Series 535

GENERAL

Impact Resistant Single hung windows as shown in the architectural drawings shall be Series 535 as manufactured by  SOL-A-TROL Aluminum Products, Miami Fla. Tested in accordance with Miami-Dade county protocol to a design pressure of +86.7, -100 psf.

MATERIAL

Extruded aluminum 6063-T6 (Alloy and Temper)

CONSTRUCTION

FRAME: The window frame shall be of .062” minimum thickness and 3 ¾” deep. All frame members shall be joined by #10 x 7/8” Stainless Steel sheet metal screws. (2 per corner)
SASH: All sash members shall have a minimum thickness of .062” and be of tubular construction.

HARDWARE

SASH: Spiral balance which shall hold sash stationary at any position . Sweep lock at meeting rail shall lock sash in closed position.

WEATHERSTRIPPING

STILE: Pile with fin on exterior.
RAILS: Double weatherstripping located inside and out using pile with fin.
SILL: Triple weatherstripping located at exterior, bottom and inside top.

FINISHES

Electro-statically applied baked enamel.
Clear Anodized.
Bronze Hardcoat.
Kynar 500

GLAZING

The glass shall be as specified under Glass and Glazing section and product approval, and held in place with extruded snap-in type glazing bead.

SCREENS

Standard screens shall be roll formed aluminum box frame fitted in pockets provided in frame. Optional screens shall be extruded box frame. Screen frame shall be screened with 18 x 16 mesh charcoal fiberglass screen cloth.

NOTICE OF ACCEPTANCE

Impact Resistant Single hung windows - Series 535

Impact Resistant Single hung windows - Series 535

Impact Resistant Single hung windows - Series 535

Sol-A-Trol Aluminum Products
4101 N.W. 132 Street
Miami, FL 33054
Tele. (305) 681-2020
Fax (305) 681-2035
